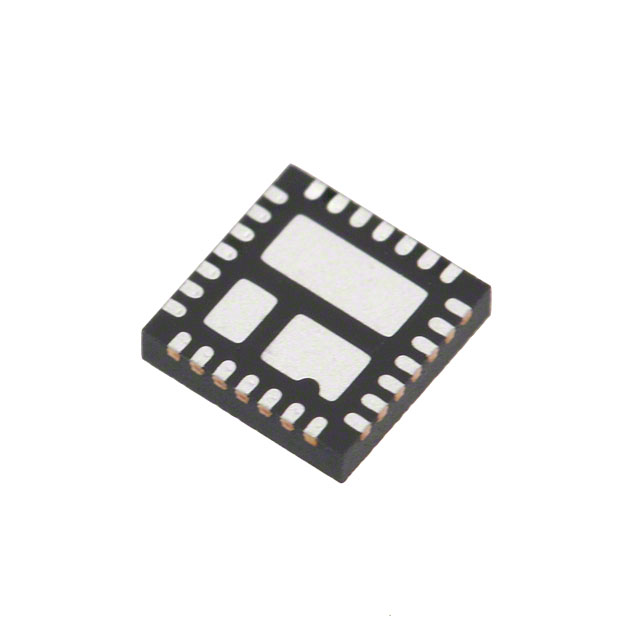

| Part Number | SC414MLTRT |
|---|
| Manufacturer | Semtech Corporation |
|---|
| Description | IC REG DL BCK/LINEAR SYNC 28MLPQ |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | SmartDrive? |
|---|
| Family | PMIC - Voltage Regulators - Linear + Switching |
|---|
| Mfg Application Notes |
SC414 Basic Design Procedure
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Topology | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) |
|---|
| Function | Any Function |
|---|
| Number of Outputs | 2 |
|---|
| Frequency - Switching | 1MHz |
|---|
| Voltage/Current - Output 1 | Adj, 6A |
|---|
| Voltage/Current - Output 2 | 5V, 150mA |
|---|
| Voltage/Current - Output 3 | - |
|---|
| w/LED Driver | No |
|---|
| w/Supervisor | No |
|---|
| w/Sequencer | No |
|---|
| Voltage - Supply | 3 V ~ 28 V |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 28-VFQFN Exposed Pad |
|---|
| Supplier Device Package | 28-MLPQ (4x4) |
|---|
| Online Catalog | Linear + Switching |
|---|
| Related Products | 732-1157-2-ND - FIXED IND 1.1UH 15A 3.15 MOHM732-1157-1-ND - FIXED IND 1.1UH 15A 3.15 MOHM732-1157-6-ND - FIXED IND 1.1UH 15A 3.15 MOHM732-1238-2-ND - FIXED IND 3.5UH 11A 9 MOHM SMD732-1238-1-ND - FIXED IND 3.5UH 11A 9 MOHM SMD |
|---|
| Other Names | SC414MLCT |
|---|
