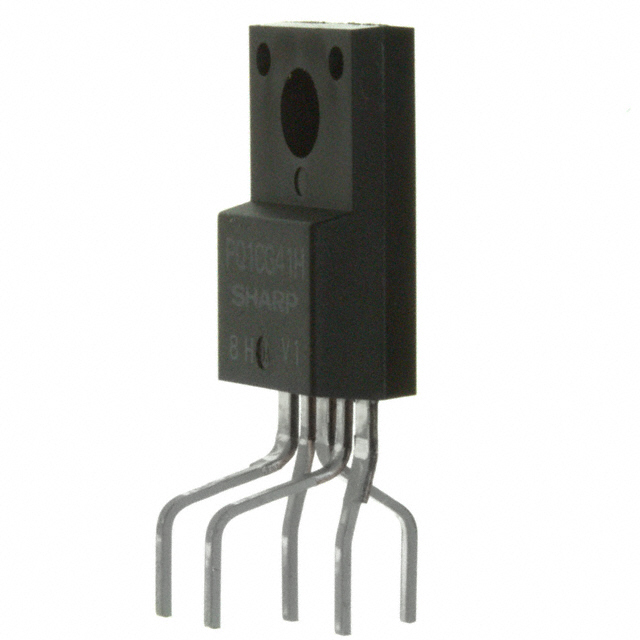

| Part Number | PQ1CG41H2RZH |
|---|
| Manufacturer | Sharp Microelectronics |
|---|
| Description | IC REG BUCK INV ADJ 1.5A TO220 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators |
|---|
| Standard Package | 500 |
|---|
| Packaging | Tube |
|---|
| Function | Step-Down |
|---|
| Output Configuration | Positive or Negative |
|---|
| Topology | Buck |
|---|
| Output Type | Adjustable |
|---|
| Number of Outputs | 1 |
|---|
| Voltage - Input (Min) | 8V |
|---|
| Voltage - Input (Max) | 35V |
|---|
| Voltage - Output (Min/Fixed) | ±1.26V |
|---|
| Voltage - Output (Max) | 35V, -30V |
|---|
| Current - Output | 1.5A |
|---|
| Frequency - Switching | 300kHz |
|---|
| Synchronous Rectifier | No |
|---|
| Operating Temperature | -20°C ~ 80°C (TA) |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | TO-220-5 Formed Leads |
|---|
| Supplier Device Package | TO-220-5 |
|---|
| Other Names | 425-2691-5PQ1CG41H2RZH-ND |
|---|
