| Part Number | ADP2108ACBZ-1.3-R7 |
|---|
| Manufacturer | Analog Devices Inc. |
|---|
| Description | IC REG BCK 1.3V 0.6A SYNC 5WLCSP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators |
|---|
| Mfg Application Notes |
Pressure Transmitter Solutions
Pulse Oximeter Solution
Electrocardiogram (ECG) Solutions
|
|---|
| Reference Design Library |
ADP2108-1.3-EVALZ: 1.3V @ 600mA, 2.3 ~ 5.5V in
|
|---|
| PCN Packaging |
WLCSP Devices/8mm 28/Feb/2012
|
|---|
| Standard Package | 3,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Function | Step-Down |
|---|
| Output Configuration | Positive |
|---|
| Topology | Buck |
|---|
| Output Type | Fixed |
|---|
| Number of Outputs | 1 |
|---|
| Voltage - Input (Min) | 2.3V |
|---|
| Voltage - Input (Max) | 5.5V |
|---|
| Voltage - Output (Min/Fixed) | 1.3V |
|---|
| Voltage - Output (Max) | - |
|---|
| Current - Output | 600mA |
|---|
| Frequency - Switching | 3MHz |
|---|
| Synchronous Rectifier | Yes |
|---|
| Operating Temperature | -40°C ~ 125°C (TA) |
|---|
| Mounting Type | Surface Mount |
|---|

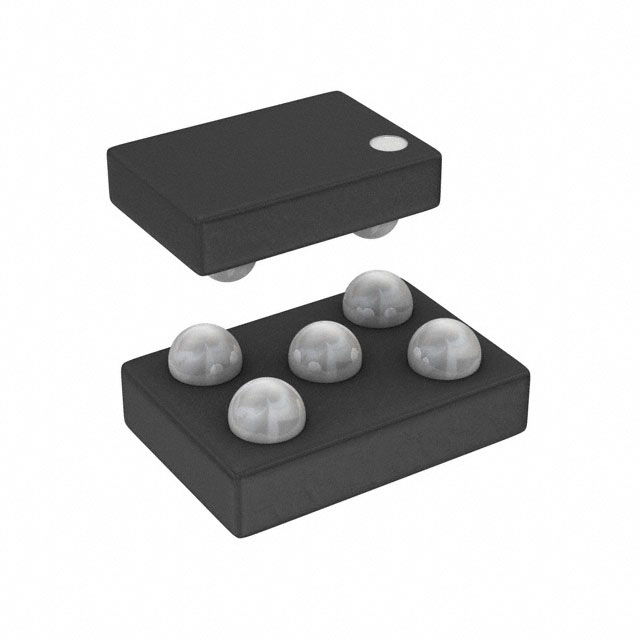

| Package / Case | 5-WFBGA, WLCSP |
|---|
| Supplier Device Package | 5-WLCSP |
|---|
| Online Catalog | Buck (Step-Down) IC |
|---|
| Other Names | ADP2108ACBZ-1.3-R7-ND |
|---|
