| Part Number | MCP1603LT-180I/OS |
|---|
| Manufacturer | Microchip Technology |
|---|
| Description | IC REG BCK 1.8V 0.5A SYNC TSOT23 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators |
|---|
| Standard Package | 3,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Function | Step-Down |
|---|
| Output Configuration | Positive |
|---|
| Topology | Buck |
|---|
| Output Type | Fixed |
|---|
| Number of Outputs | 1 |
|---|
| Voltage - Input (Min) | 2.7V |
|---|
| Voltage - Input (Max) | 5.5V |
|---|
| Voltage - Output (Min/Fixed) | 1.8V |
|---|
| Voltage - Output (Max) | - |
|---|
| Current - Output | 500mA |
|---|
| Frequency - Switching | 2MHz |
|---|
| Synchronous Rectifier | Yes |
|---|
| Operating Temperature | -40°C ~ 125°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|

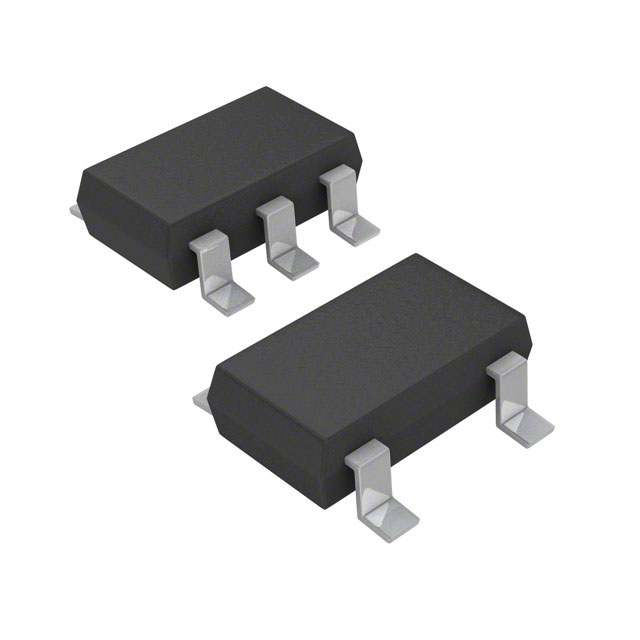

| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
|---|
| Supplier Device Package | TSOT-23-5 |
|---|
| For Use With | MCP1603EV-ND - BOARD EVAL BUCK CONV MCP1603MCP1603RD-TNY-ND - REFERENCE DESIGN FOR MCP1603 |
|---|
