| Part Number | BTS5045-2EKA |
|---|
| Manufacturer | Infineon Technologies |
|---|
| Description | IC PWR SW HI-SIDE 2CH DSO14-40 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | PROFET? |
|---|
| Family | PMIC - Power Distribution Switches, Load Drivers |
|---|
| PCN Packaging |
Dry Packing Box Update 24/Sep/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Switch Type | General Purpose |
|---|
| Number of Outputs | 2 |
|---|
| Ratio - Input:Output | 1:1 |
|---|
| Output Configuration | High Side |
|---|
| Output Type | N-Channel |
|---|
| Interface | On/Off |
|---|
| Voltage - Load | 8 V ~ 18 V |
|---|
| Voltage - Supply (Vcc/Vdd) | Not Required |
|---|
| Current - Output (Max) | 3A |
|---|
| Rds On (Typ) | 85 mOhm |
|---|
| Input Type | Non-Inverting |
|---|
| Features | Auto Restart |
|---|
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
|---|
| Operating Temperature | -40°C ~ 150°C (TJ) |
|---|

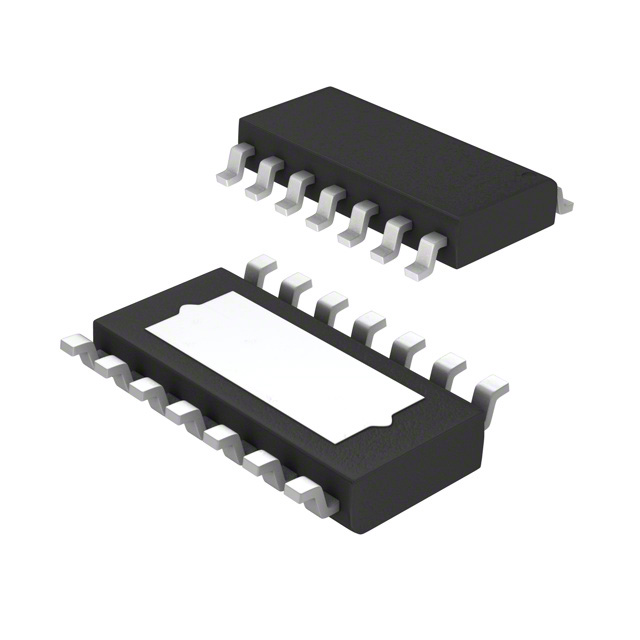

| Package / Case | 14-SOIC (0.154", 3.90mm Width) Exposed Pad |
|---|
| Supplier Device Package | PG-DSO-14-40-EP |
|---|
| Online Catalog | General Purpose |
|---|
| Other Names | BTS5045-2EKACT |
|---|
