| Part Number | BD2242G-GTR |
|---|
| Manufacturer | Rohm Semiconductor |
|---|
| Description | IC USB PWR SW HI SIDE 1CH 6SSOP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | PMIC - Power Distribution Switches, Load Drivers |
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Switch Type | USB Switch |
|---|
| Number of Outputs | 1 |
|---|
| Ratio - Input:Output | 1:1 |
|---|
| Output Configuration | High Side |
|---|
| Output Type | N-Channel |
|---|
| Interface | On/Off |
|---|
| Voltage - Load | 2.8 V ~ 5.5 V |
|---|
| Voltage - Supply (Vcc/Vdd) | Not Required |
|---|
| Current - Output (Max) | 1.7A |
|---|
| Rds On (Typ) | 89 mOhm |
|---|
| Input Type | Non-Inverting |
|---|
| Features | Load Discharge, Status Flag |
|---|
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO |
|---|
| Operating Temperature | -40°C ~ 85°C (TA) |
|---|

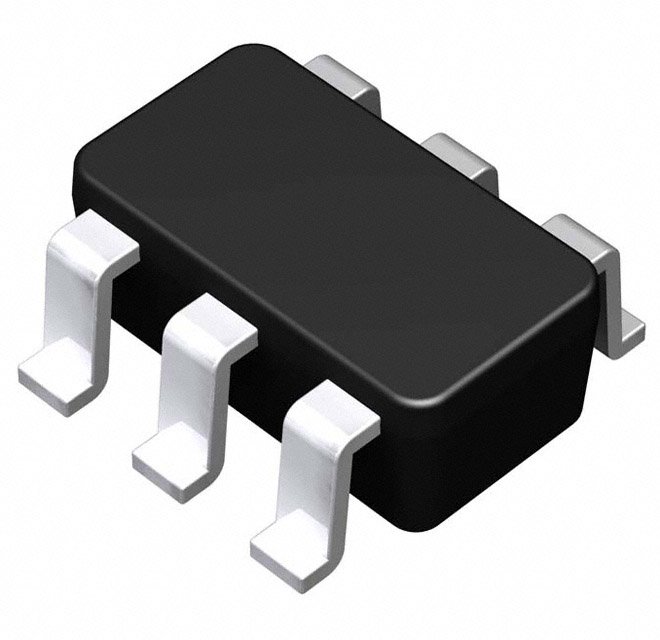

| Package / Case | SOT-23-6 |
|---|
| Supplier Device Package | 6-SSOP |
|---|
| Online Catalog | USB Switch |
|---|
| Other Names | BD2242G-GCT |
|---|
