| Part Number | BTS452T |
|---|
| Manufacturer | Infineon Technologies |
|---|
| Description | IC SWITCH PWR HISIDE TO252-5 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | miniPROFET? |
|---|
| Family | PMIC - Power Distribution Switches, Load Drivers |
|---|
| PCN Assembly/Origin |
Wafer Production Site 04/Dec/2013
|
|---|
| PCN Packaging |
Cover Tape Width Update 17/Jun/2015
Cover Tape Width Cancellation 14/Jul/2015
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Switch Type | General Purpose |
|---|
| Number of Outputs | 1 |
|---|
| Ratio - Input:Output | 1:1 |
|---|
| Output Configuration | High Side |
|---|
| Output Type | N-Channel |
|---|
| Interface | On/Off |
|---|
| Voltage - Load | 6 V ~ 52 V |
|---|
| Voltage - Supply (Vcc/Vdd) | Not Required |
|---|
| Current - Output (Max) | 1.8A |
|---|
| Rds On (Typ) | 150 mOhm |
|---|
| Input Type | Non-Inverting |
|---|
| Features | Auto Restart |
|---|
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
|---|
| Operating Temperature | -40°C ~ 150°C (TJ) |
|---|

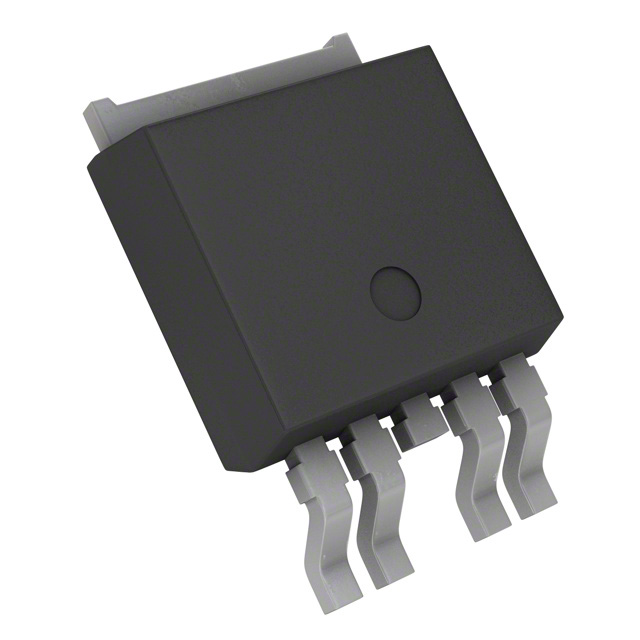

| Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
|---|
| Supplier Device Package | PG-TO252-5 |
|---|
| Online Catalog | General Purpose |
|---|
| Other Names | BTS452TDKR |
|---|
