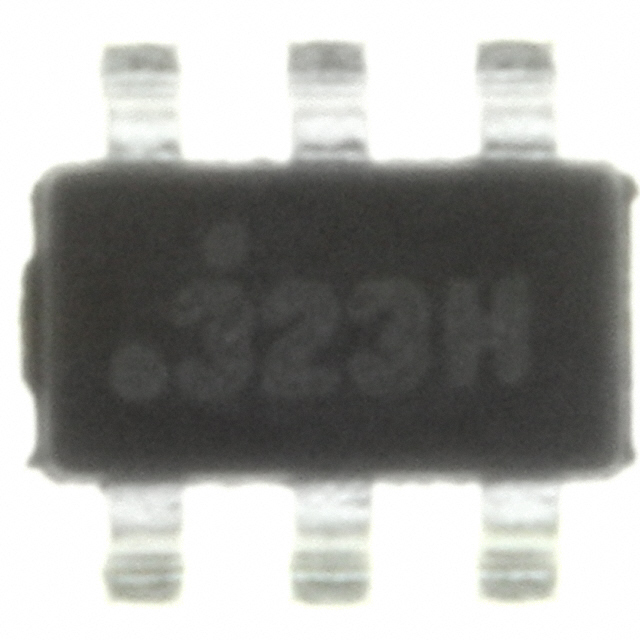

| Part Number | FDC6323L |
|---|
| Manufacturer | Fairchild Semiconductor |
|---|
| Description | IC LOAD SWITCH INT 8VIN SSOT-6 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | PMIC - Power Distribution Switches, Load Drivers |
|---|
| PCN Design/Specification |
Mold Compound 08/April/2008
|
|---|
| PCN Packaging |
Binary Year Code Marking 15/Jan/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Switch Type | General Purpose |
|---|
| Number of Outputs | 1 |
|---|
| Ratio - Input:Output | 1:1 |
|---|
| Output Configuration | High Side |
|---|
| Output Type | P-Channel |
|---|
| Interface | On/Off |
|---|
| Voltage - Load | 3 V ~ 8 V |
|---|
| Voltage - Supply (Vcc/Vdd) | 1.5 V ~ 8 V |
|---|
| Current - Output (Max) | 1.5A |
|---|
| Rds On (Typ) | - |
|---|
| Input Type | Non-Inverting |
|---|
| Features | - |
|---|
| Fault Protection | - |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
|---|
| Supplier Device Package | 6-SSOT |
|---|
| Online Catalog | General Purpose |
|---|
| Other Names | FDC6323LDKR |
|---|
