| Part Number | IR2156PBF |
|---|
| Manufacturer | International Rectifier |
|---|
| Description | IC CONTROLLER BALLAST 600V 14DIP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | PMIC - Lighting, Ballast Controllers |
|---|
| Product Training Modules |
High Voltage Integrated Circuits (HVIC Gate Drivers)
|
|---|
| Reference Design Library |
IRPLCFL3: 26W CFL Ballast, 120 VAC
|
|---|
| Standard Package | 25 |
|---|
| Packaging | Tube |
|---|
| Type | Ballast Controller |
|---|
| Frequency | 36kHz ~ 44kHz |
|---|
| Voltage - Supply | 10.5 V ~ 16.5 V |
|---|
| Current - Supply | 10mA |
|---|
| Current - Output Source/Sink | - |
|---|
| Dimming | No |
|---|
| Operating Temperature | -25°C ~ 125°C |
|---|
| Mounting Type | Through Hole |
|---|

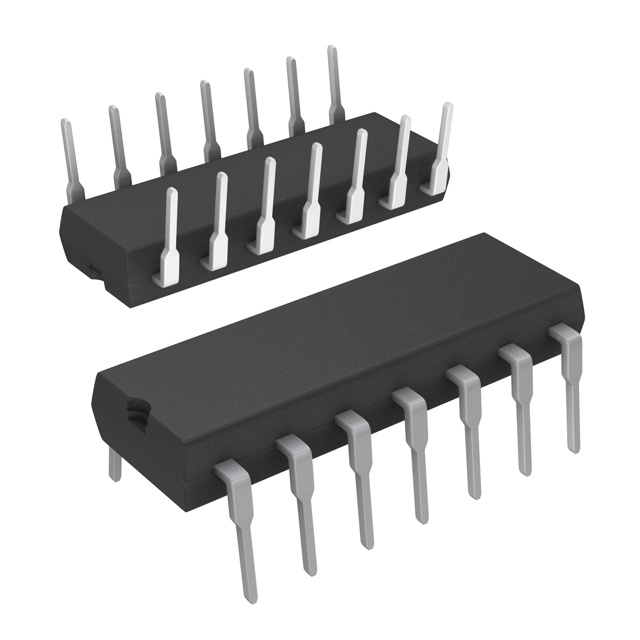

| Package / Case | 14-DIP (0.300", 7.62mm) |
|---|
| Drawing Number | 21; 01-3002; ; 14 |
|---|
| Mfr Reel Diameter | * |
|---|
| Mfr Reel Tape Material | * |
|---|
| Mfr Reel Tape Width | * |
|---|
| Supplier Device Package | 14-DIP |
|---|
| Online Catalog | Lighting, Ballast Controllers |
|---|
| For Use With | IRPLCFL3-ND - KIT DESIGN CFL TRIAC DIMMINGIRPLCFL4-ND - IC BALLAST DIMMING CFL 3-WAY |
|---|
| Other Names | *IR2156PBF |
|---|
